產品介紹：

       pco.edge 26 CLHS 相機集成高速和高分辨率功能。它提供2600萬像素的圖像分辨率與高速數據傳輸光纖接口。它的4個CLHS 光纖通道都在一個緊湊的插頭中排列能夠傳輸高達4.9 GByte/s，相機優勢不會導致圖像質量的損失，相機具備低的讀噪聲和暗電流。

       這些特點讓pco.edge 26 CLHS成為是生命科學和物理科學等眾多應用的解決方案。它非常適合于顯微成像，質量控制高通量篩選和其他微觀觀察的應用 。超高分辨率成像，因為相機具備高分辨率，所以能夠獲取足夠多的圖像信息與圖像細節，這對于圖像的質量與后期的分析至關重要。

       pco.edge 26提供5120 x 5120像素的分辨率，像素大小2.5 x 2.5μm2。它對于實現空間分辨率的最 大級別非常優秀。適用于顯微鏡低放大倍數的成像。真正的電荷域全局快門，極低的讀出噪聲和暗電流，冷卻溫度可調，曝光時間延長至60秒, 實現長時間曝光。該相機提供高達150幀/秒的高幀率，并通過光纖傳輸。

產品特點：

· 全局/快照快門（GS）

· 超高分辨率 5120 x 5120 pixel

· 曝光時間 27 μs ... 60 s

· 像素大小 (h x v): 2.5 μm x 2.5 μm

· 動態范圍 66 dB

· 幀率 150 fps @ 26 MP

· 可選購PIV功能與電動鏡頭控制接口

· 量子效率最 大 72 % quantum efficiency

· 傳輸接口 光纖傳輸

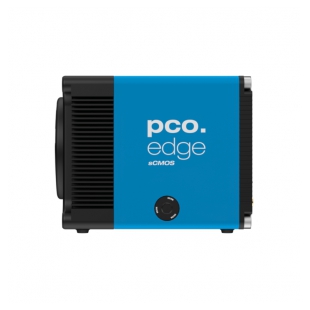

pco.edge 26 CLHS

high 26 MP resolution, true global shutter

High-speed and high-resolution streaming at the same time – the pco.edge 26 CLHS offers the best of both worlds and much more.

The newest member of our highly successful pco.edge series combines the image quality of a 26 MPixel image sensor with unrivaled data transfer options. Its 4 CLHS FOL channels – all aligned in one compact plug – can be selected from 1 to 4 at a time and are capable of transmitting up to 4.9 GByte/s. These advantages do not result in a loss of image quality as the camera operates at minimum read noise and dark current. All these features make the pco.edge 26 CLHS a powerful solution for numerous applications in life science and physical science.

Key Features:

· global/snapshot shutter (GS)

· ultra high resolution: 5120 x 5120 pixel

· pixel size (h x v): 2.5 μm x 2.5 μm

· dynamic range 66 dB

· frame rate 150 fps @ 26 MP

· up to 72 % quantum efficiency

· parasitic light sensitivity: 1/10,000

· temperature-stabilized image sensor

· fiber optic data interface

產品參數：

注：產品信息若有變更恕不另行通知  / 元奧儀器，www.gzyaco.com
